MV/LV Transformer Monitoring

Online transformer monitoring is a solution for real-time monitoring of transformer operating status. Through analysis of electricity meters and sensors, it can promptly detect equipment anomalies and provide early warnings, thereby ensuring the safe and stable operation of the power system.

Parameters and solutions:

Power parameters: Voltage, current, power, power factor, temperature, harmonics, transformer load rate.

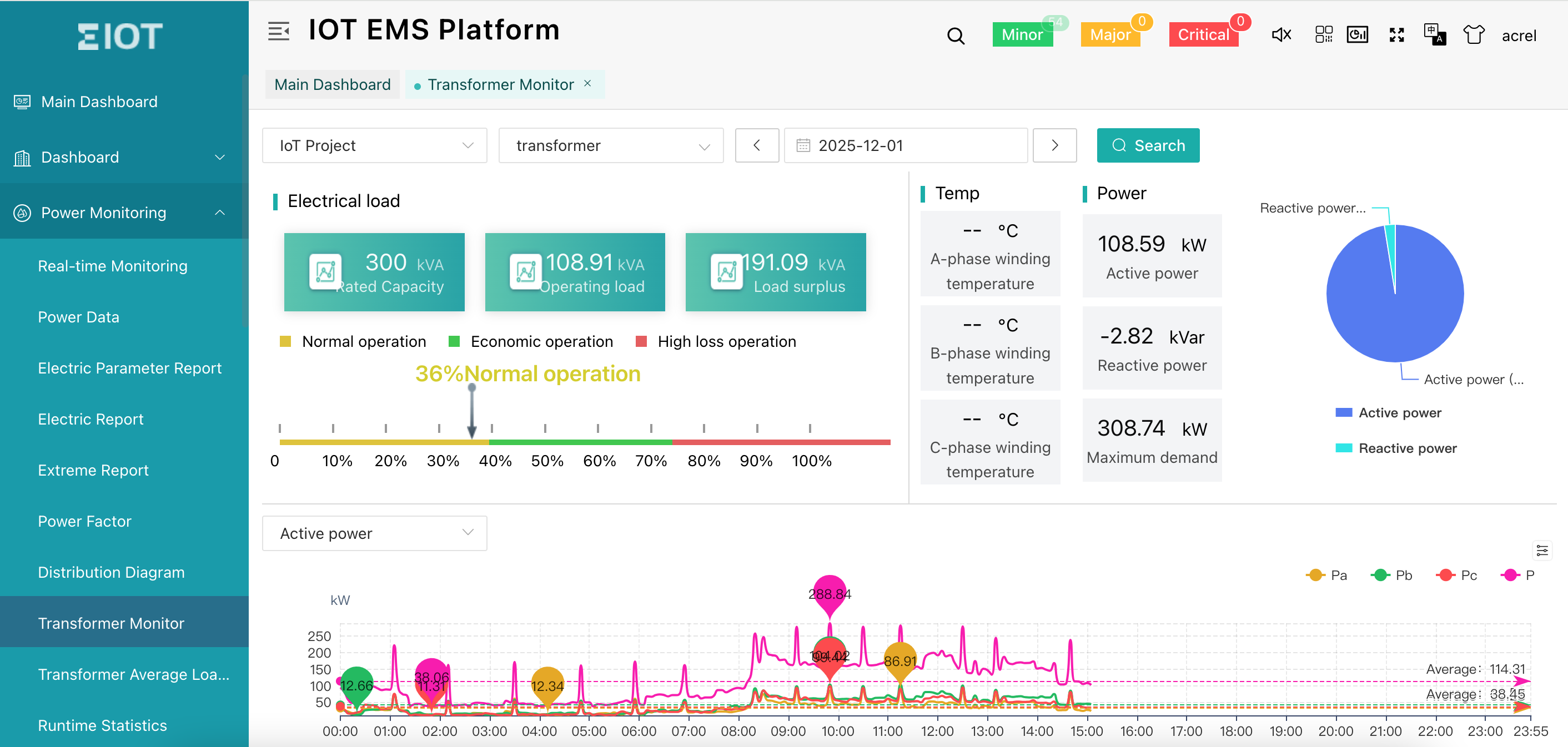

IoT platform provide real-time data and historical data reports.

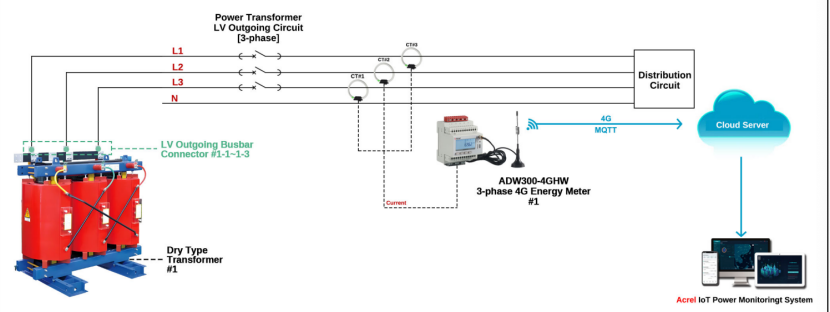

Transformer power monitoring

- 1* ADW300-4GHW 3-phase 4G Wireless Energy Meter [For monitoring all necessary electricity data from LV outgoing busbar of power transformer]

- 3* BR-150 1000A/100mV Rogowski Coil Current Transformer [paired with ADW300-4GHW

Power Transformer Monitoring and Alarming Solution for current input]

(1) This part of solution introduce power transformer LV outgoing busbar electricity parameters monitoring like current, voltage, power, power factor, transformer load rate, etc.

(2) Each power transformer require power monitoring for 3-phase LV outgoing busbar.

(3) 4G communication is available for the site

Transformer temperature monitoring

(1) This temperature monitoring solution was majorly designed for monitoring and alarming both locally and remotely the temperature and electricity parameters of crucial electrical nodes in dry power transformer like inner winding or LV outgoing busbar connector and MV incoming terminal connector.

(2) We use ATE400 tempterature sensors to monitor temperature. Real-time temperature monitoring and alarm system will be necessary to prevent it from potential fire hazard causing by the rising of temperature.

(3) For power transformer, monitoring and alarming of load rate, power factor, current, voltage will be crucial for doing the power transformer maintenance.
