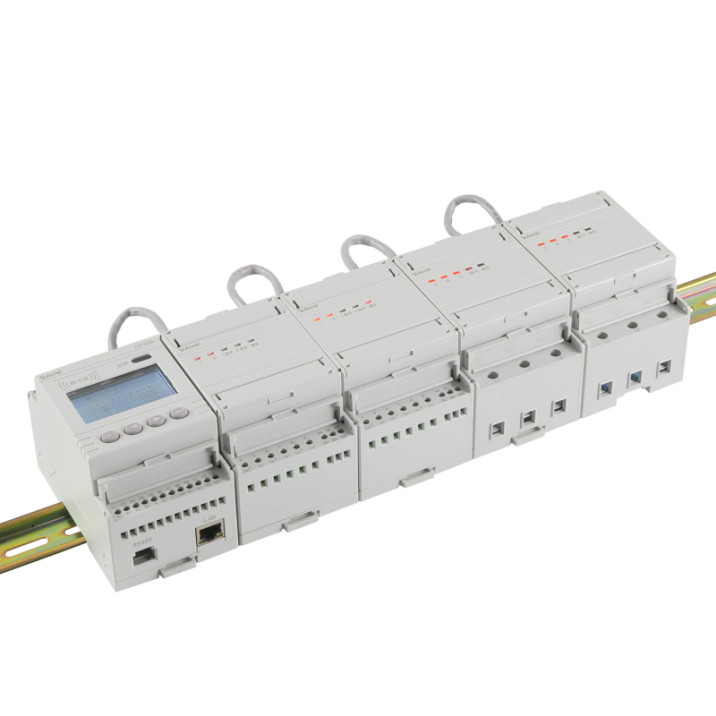

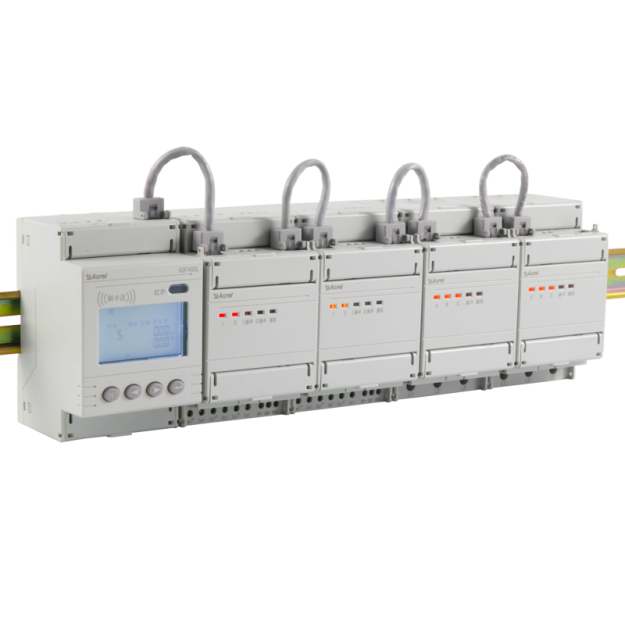

Acrel ADF400L-2H-CE Din-rail Ethernet Interface Electricity Meter

Acrel ADF400L-2H-CE DIN-rail Ethernet meter—with its sophisticated design, high-speed communication, and precise metering—helps you achieve real-time, refined, and intelligent power management. Save labor, reduce costs, ensure safety, and promote energy conservation.

Compact design for easy installation.


Technical Parameter		ADF400L
Auxiliary power	Voltage	Three-phase 3*220V/380V power supply (for single-phase power supply, short-circuit terminals 1, 2, and 3 on the instrument)
Auxiliary power	Power consumption	≤10W
Voltage input	Rated voltage	3×220/380V、3×57.7/100V
Voltage input	Reference frequency	50Hz

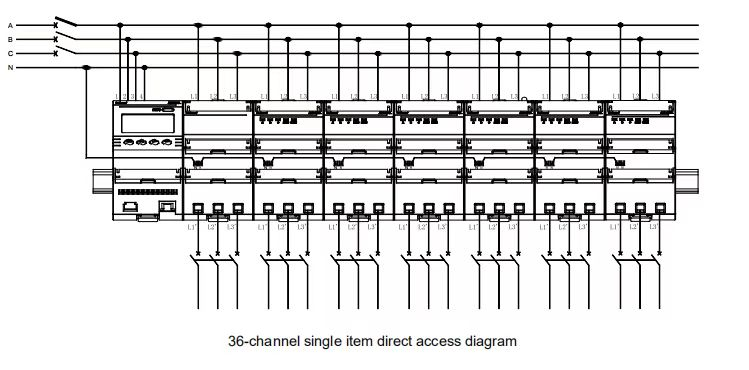

Current input	Input Current	3×1(6)A(Instrument transformer access), 3*10 (80) (direct access)
Current input	Starting current	1‰Ib
Measuring performance	Measurement accuracy	0.5s level
Measuring performance	Clock accuracy	≤0.5s/d
Pulse	Pulse output	Each three-phase metering module has 1 active energy pulse
	Pulse Width	80ms±20ms
	Pulse constant	3×1(6)A specification 6400 imp/kWh
		3×10(80)A specification 400 imp/kWh
Switch	Main module	Main module 2DI+2DO，Among them, DI is dry contact input
Switch	Slave module	Transformer access slave module 4DI+4DO，Among them, DI is 220V wet contact input
Communication	Infrared interface	Infrared communication
	RS485 interface	MODBUS-RTU
	Ethernet interface	Modbus-TCP、TCP/IP
Surroundings	Temperature	Operating temperature：-20℃~+60℃， storage temperature：-30℃~+70℃
	Humidity	≤95%RH，No condensation, no corrosive gas place
	Altitude	≤2000m

Direct Ethernet connection for high-speed transmission

A built-in 10/100M adaptive Ethernet port allows direct access to a LAN or the internet, delivering real-time, high-speed transmission of voltage, current, power, and energy data, eliminating meter reading delays.


High-precision single-phase metering

Designed specifically for single-phase AC power applications, it achieves Class 1 measurement accuracy, ensuring accurate and reliable data and providing a solid foundation for refined energy management.

Industrial-grade reliability

With a wide operating temperature range and strong anti-interference capabilities, it is suitable for diverse environments, including factories, computer rooms, and shops, ensuring continuous and stable operation.

real-time monitoring

Comprehensively monitors parameters such as voltage, current, power, power factor, frequency, and four-quadrant energy, providing real-time visibility into equipment operating status. Accurate Energy Consumption Statistics

Supports time-of-use metering of forward/reverse active energy and four-quadrant reactive energy, providing accurate data for energy consumption analysis and cost allocation.

Remote Automatic Meter Reading

Automatic remote data collection via Ethernet eliminates human error, significantly improving efficiency and reducing labor costs. Abnormal Power Usage Alert

Supports threshold settings and alarms for real-time monitoring of abnormal conditions such as overvoltage, undervoltage, and overload, improving power safety and reliability. Seamless System Integration

Supports Modbus-TCP protocol for rapid integration with energy management systems, business administration systems, power monitoring platforms, or cloud platforms, fully leveraging data value.

Where is it suitable?

Factory workshops: Accurately monitor the energy consumption of production lines and key equipment, optimize production cycles, and reduce unit energy consumption. Commercial buildings/stores: Per-tenant metering for clear cost accounting; monitor lighting and air conditioning energy consumption in shops and public areas. Communication base stations/data centers: Real-time monitoring of power usage for critical cabinets and IT equipment to ensure operational stability. Smart grid user terminals: Support monitoring of new power-consuming facilities such as distributed photovoltaics and charging stations. Schools/hospitals: Refined power management for teaching buildings, laboratories, and departmental wards.

Why choose the ADF400L-2H-CE?

Din-rail mounting and direct Ethernet connection eliminate the need for additional data acquisition equipment and complex wiring, significantly reducing installation and maintenance costs. Real-time data, efficient decision-making.

High-speed Ethernet transmission ensures real-time data, surpassing traditional RS485 and wireless methods, enabling rapid response and decision-making. Open protocols for easy integration.

Standard Modbus-TCP protocol offers strong compatibility and allows for quick integration into existing intelligent systems.

Originating from the leading domestic smart power meter brand, the products have been verified by many industry applications, and the quality and after-sales service are guaranteed.

Approve CE certification, it complies with EU safety, health and environmental protection standards and is suitable for a wider market.
