Battery classification: backup battery, energy storage battery, power battery
Battery parameters: voltage, temperature, internal resistance, charge and discharge current, SOC, SOH
Acrel ABAT100 series battery online monitoring system is an online battery monitoring product that can provide early warning of failed batteries and battery balancing, in compliance with ANSI/TIA-942 standard requirements.
The system has the function of monitoring the battery voltage, internal resistance and internal temperature, and is very convenient to install, maintain and access. The system is mainly composed of ABAT100-S module, ABAT100-C module, ABAT100-HS collector, and ATP010KT touch screen. The collector can be used to query alarms and real-time data, set parameters, etc., and an optional monitoring platform can be used to achieve networked centralized management.Used to manage and collect data from distributed single-battery monitoring modules at the front end, and perform data processing, analysis, alarm generation, storage and upload;
Characteristic:
One collector can manage 1 group, 120 batteries;
Automatic data analysis and processing can estimate the remaining capacity of the battery;
Support MODBUS protocol and can be connected to a third-party monitoring system.
ABAT100-S single-cell battery monitoring module
24-hour online monitoring every day to detect batteries with degraded performance at any time;
Divided into three detection ranges of 2V, 6V, and 12V, which meet the requirements of most batteries;
Each module monitors one battery, monitoring voltage, internal resistance and negative electrode temperature;
Easy to install, one wire is connected to each positive and negative pole, and it can be installed without special training.
Typical industry applications:
Data center
UPS power supply system is the core part to meet the power supply quality of the data center, and the battery is one of the important components of the entire system, which is a "barrier" for the entire power supply system.
Acrel battery online monitoring system scientifically manages the operation and maintenance of the battery system, monitors and maintains it, and promptly discovers hidden faults, thereby objectively extending the service life of the battery, ensuring power supply safety, and reducing the total cost of ownership.
Tower base station
The country vigorously implements the network power strategy, laying a solid foundation for the sustained and rapid development of the mobile communications industry. To ensure the smooth operation of the base station 24 hours a day, the backup power supply plays a very important role in it.
Acrel battery online monitoring system escorts the stable operation of the tower base station, can realize real-time online monitoring of battery parameters, and promptly issue early warnings for battery failures and risks. It is extremely convenient to install, maintain and access, ensuring the safe operation of the battery.
Petroleum and petrochemical refineries, power plants, docks, tank farms, control rooms, substations, and data centers have extremely high requirements for the stability and continuity of the power supply system. In the exploration, drilling, oil production, transportation, refining and other links, computer rooms and data centers are equipped for data storage and analysis.
Battery collector ABAT100-HS
Technical parameters | Description |
Working Environment | Operating temperature: -10℃~50℃ Relative humidity: 5%~95% Atmospheric pressure intensity: 80~110kPa |
Management Capability | One collector can monitor a maximum of total 120 batteries |
Alarm Type | Group voltage overcharge/discharge, single voltage overcharge/discharge, current overcharge/discharge, high internal resistance of single unit, abnormal communication, etc. |
Power Supply | DC24V |
Protection | With over-voltage and short circuit protection |
Communication Interface | With RS485 communication port, support MODBUS/RTU |
Insulation withstand voltage | 2000VAC |
Installation method | Tie-down mounting or adhesive mounting |
Weight | 90g |
Single Battery Monitoring Module ABAT100-C
Technical parameters | Description | ||
Working Environment | Operating temperature: -10℃~50℃ Relative humidity: 5%~95% Atmospheric pressure intensity: 80~110kPa | ||
Monitoring Capability | One C-module monitors the charge and discharge current of a group of batteries against the ambient temperature | ||
Monitoring Scope | 2V, 6V, 12V battery pack | ||
Measurement range and accuracy | Measurement content | Range | Accuracy |
Charging and discharging current | 0~1000A | ±1% | |
Ambient temperature | -5℃~+105℃ | ±1°C | |
Power requirements | DC24V, 1W | ||
Protection | Measurement circuit and power circuit with two levels of protection | ||
Communication Interface | UART port, support MODBUS protocol | ||
Weight | 90g |
Single-cell battery monitoring module ABAT100-S
Technical parameters | Description | ||
Working Environment | Operating temperature: -10℃~50℃ Relative humidity: 5%~95% Atmospheric pressure intensity: 80~110kPa | ||
Monitoring Capability | One S-module monitors one battery | ||
Monitoring Scope | 2V, 6V, 12V battery with capacity less than 3000AH | ||
Measurement range and accuracy | Measurement content | Range | Accuracy |
Single Voltage | 2V, 6V, 12V | ±0.1% | |
Single internal resistance | 50~65535uΩ | (Resolution) 1uΩ | |
Negative temperature | -5℃~+105℃ | ±1°C | |
Communication Interface | UART port, support MODBUS protocol | ||
Weight | 90g |
Power supply KDYA-DG1502-12K
Name | KDYA-DG1502-12K | |
Input | Voltage and current | AC 85 - 264V or DC 100 - 230V 0.3A / 230VAC |
Frequency | 47-63Hz or DC | |
Gush | 28A / 230VAC / 20ms Initial power-on time | |
Typical efficiency value | 80% | |
Output | Voltage | ±12.0V ±1% |
Current | 0 - 0.6A | |
Dimension | 72×63×27 | |
Weight | 90g |
Open loop Hall current sensor AHKC-EKC
Parameters | Indicators |
Rated input current | 0~(500-1500)A |
Rated output voltage | ±5V |
Accuracy class | 1.0 |
Supply voltage | DC±15V (Allowed fluctuation ±20%) |

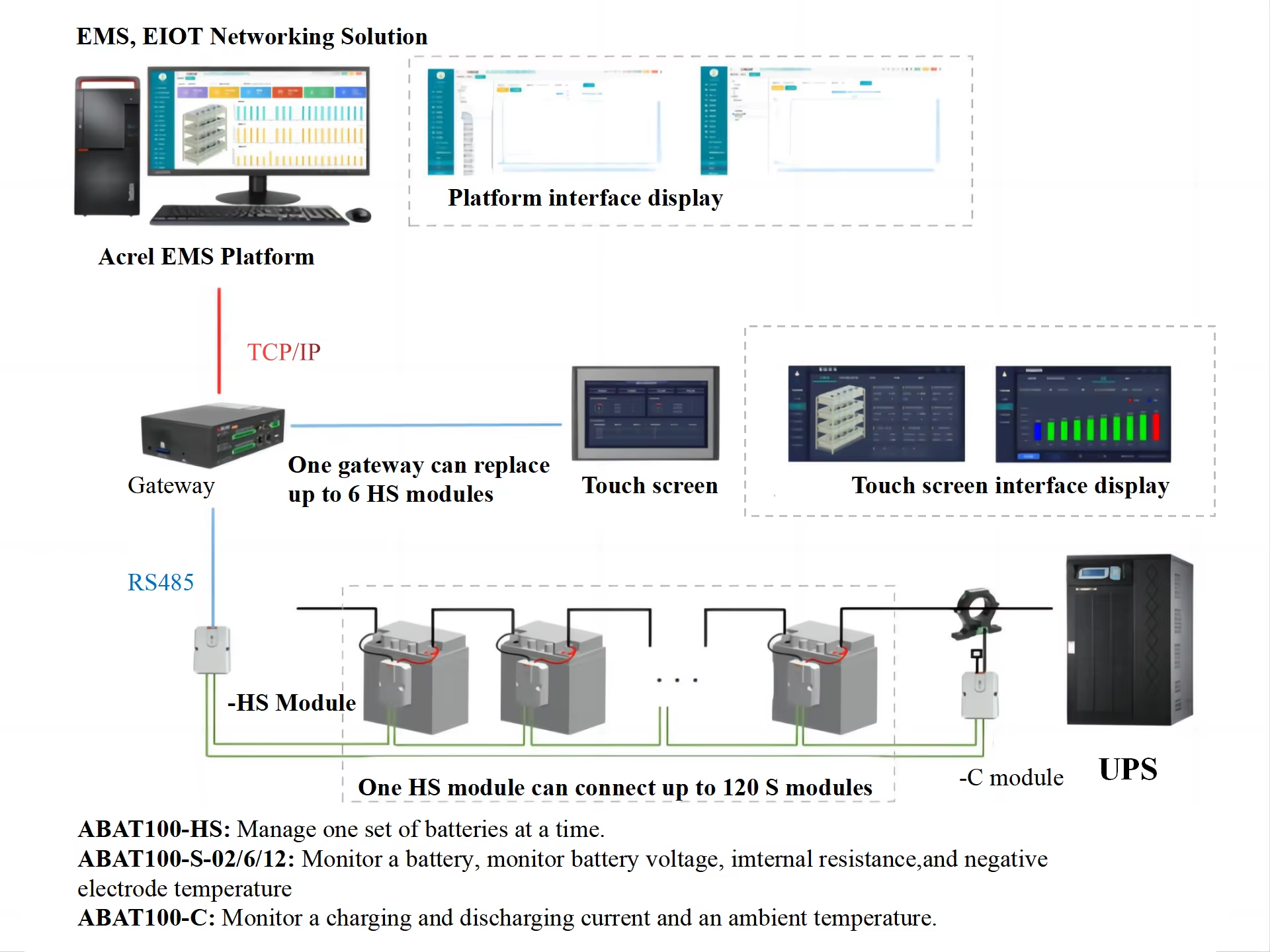

Network solution: Touch screen serial port acquisition network solution
