Multi channel energy meter in Data Center energy measurement

This is an integrated solution for monitoring multi-circuits and mains by using a single meter.

The meter is designed for use in both new build and reconstruction and is used for critical power operations in data centres and energy management in buildings.

The ideal solution for data centre managers, energy or facility managers, engineers and operational executives who are responsible for delivering power to critical applications.

●AMC16Z series AC branch circuit power meter can be used for building low-voltage distribution multi-circuit monitoring, especially for data center IT cabinet monitoring.

●It offers class 1 (1 %) power and energy system accuracy (including 50 A to 400 A CTs) on all branch circuits. ●AMC16Z-FAK24 monitor the full power parameters and switch state of 24 branches of double-channel AC outlet, 1-channel RS485 communication and phase adjustment.

●AMC16Z-FAK48 monitor the full power parameters and switch state of 48 branches of double-channel AC outlet, 1-channel RS485 communication and phase adjustment.

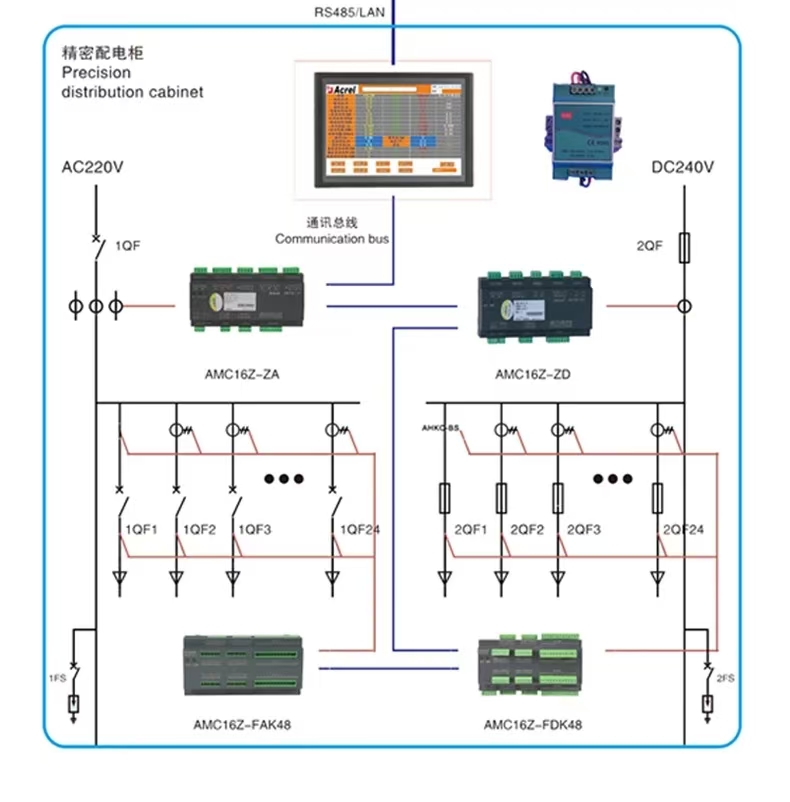

●AMC16Z-FAK24 and AMC16Z-FAK48 are commonly used in the Acrel AMC Precision Distribution Management System.-- Multi-Circuit Metering Product Specification www.jsacrel.com Solution AMC16Z series meters are solutions for the following markets:

●Buildings

●Data center Benifits

●Flexible modules can be arbitrarily assembled to accommodate any PDU solution.

●Support new construction and renovation projects.It has the advantage of flexible assembly to respond to special power distribution detection schemes.

Advantage

●Applicable to any PDU solutions scheme for new construction and renovation

●Class 0.5 system accuracy

●RS485 port ●Flexible assembly ●IEC61010-1 ●IEC62053-22 class 0.5

Technical parameters		AMC16Z-FDK24	AMC16Z-FDK48
Measured parameter		Voltage, current, power, electrical energy, switching state
Bus voltage	Ratetd	48VDC,240VDC,336VDC
	Measured range	±20%
	Overload	Instantaneous voltage 2 times per second
Current outcoming line circuit	Ratetd	5V (Hall sensor,external power supply ±12V)
	Range
	Overload	Duration 1.2 times, instantaneous 10 times/second
Measurement precision	Outgoing line	Voltage/current level 0.5,power/electric energy level 1
Auxiliary power		Get power supply from AMC16Z-ZD
Environment	Temperature	Work: -15℃ ~ 55℃ Storage: -25℃ ~ 70℃
	Humidity	Relative humidity ≤93%
	Altitude	≤2500m
Communication		RS485/Modbus-RTU
Installation		DIN35mm guide rail or baseplate mounted
Protection level		IP20
