DC current signal isolator DC4-20mA input and output.
Technical Parameters | Index | ||
Accuracy | Class 0.5 | ||
Input | Current: AC1A, 5A | ||
Frequency | 45Hz~65Hz | ||
Output | DC 4~20mA, 0~20mA, DC 0~5V or DC 0~10V | ||
Function | 1 channel analog output | ||
Optional functions | 2~4 channels analog output | ||
Power supply | AC/DC 85~265V |

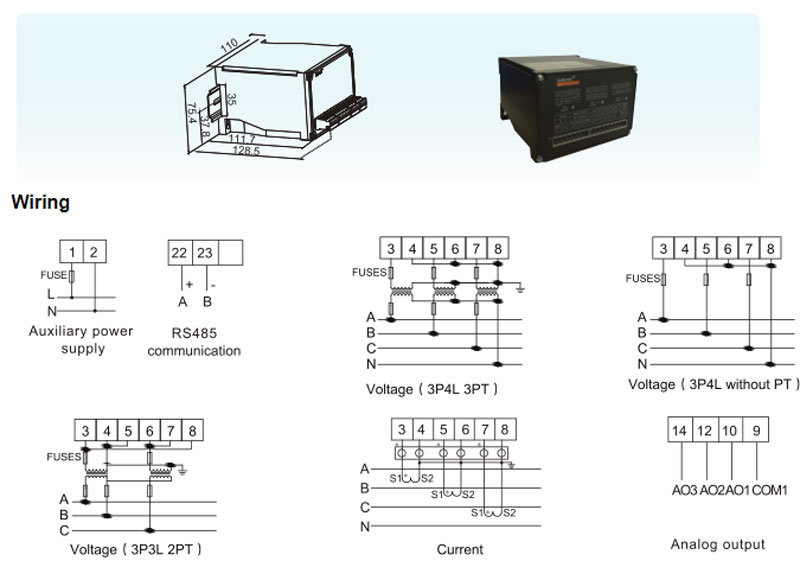

The outline size of BD-3V3 is shown in figure(Unit: mm)
