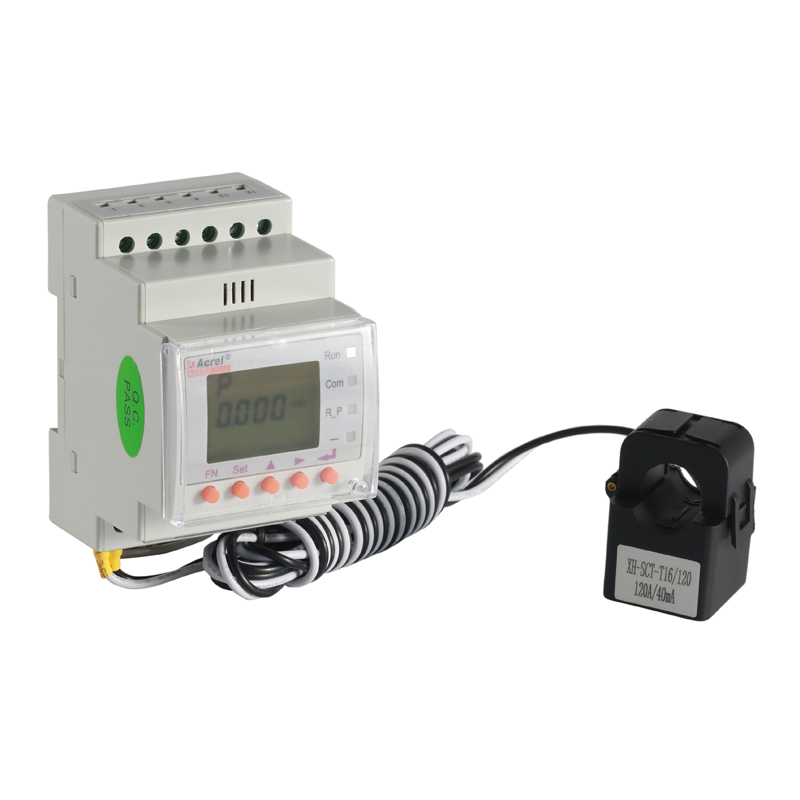

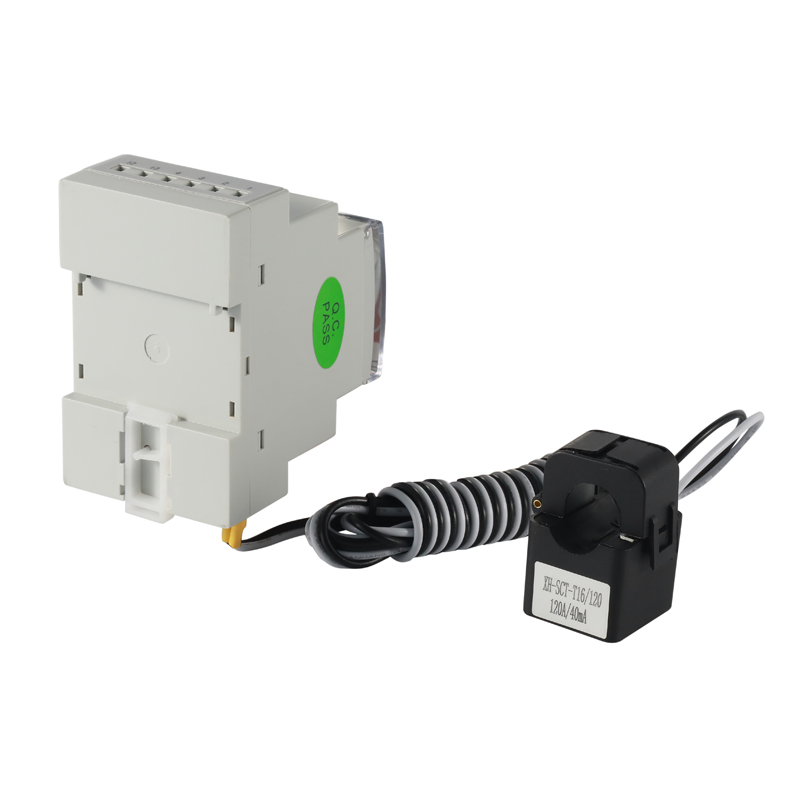

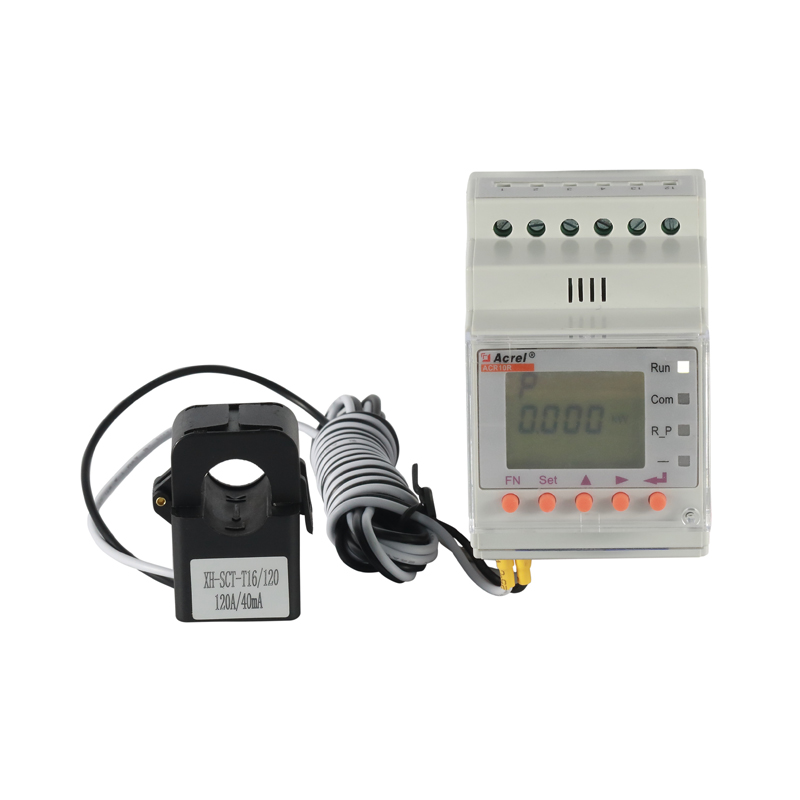

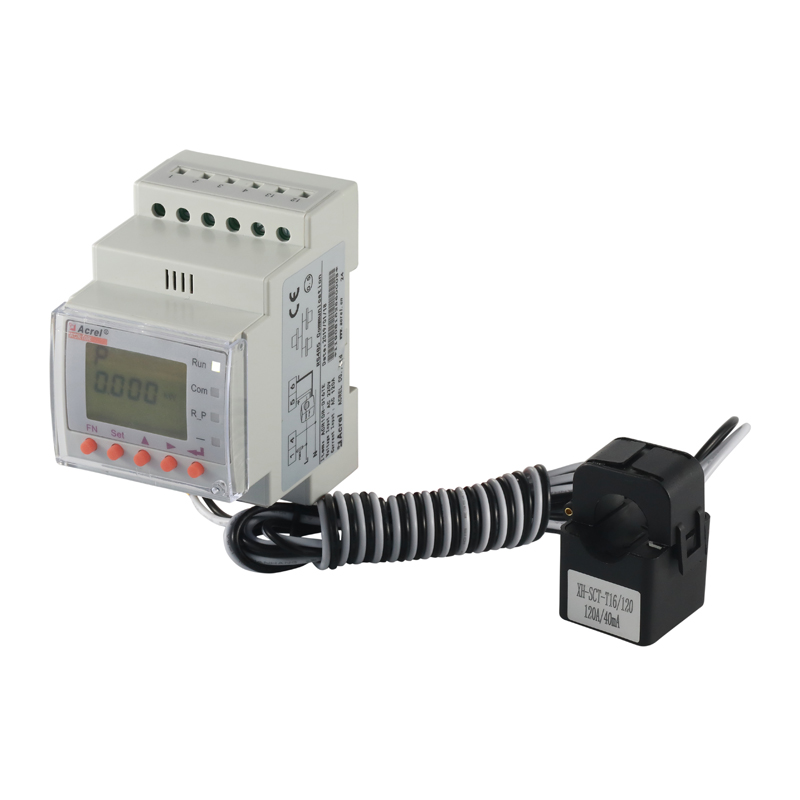

ACR10R-D16TE

Name: ACR10R-D16TE
Brand: Acrel Co., Ltd.



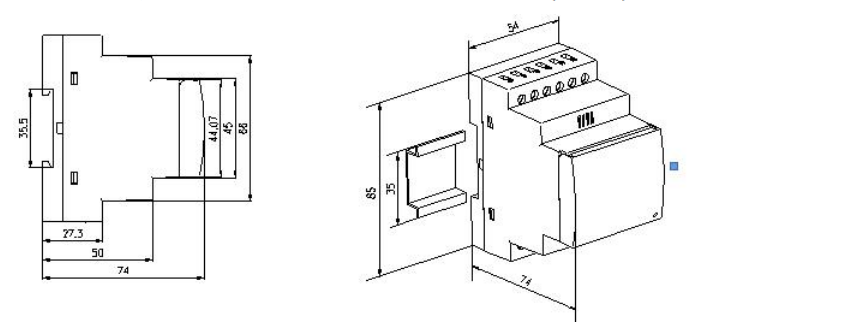

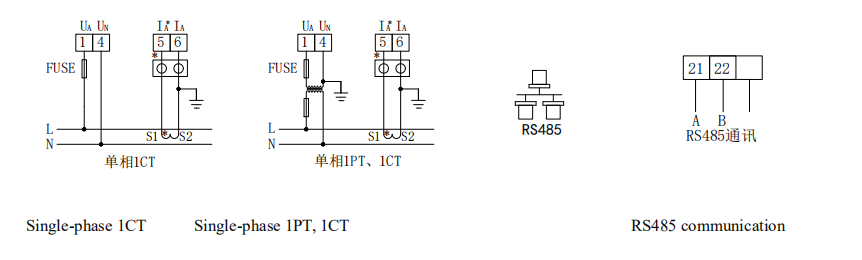

Wiring

It is recommended to use 0.5A or 3A for the fuse in the connection diagram;

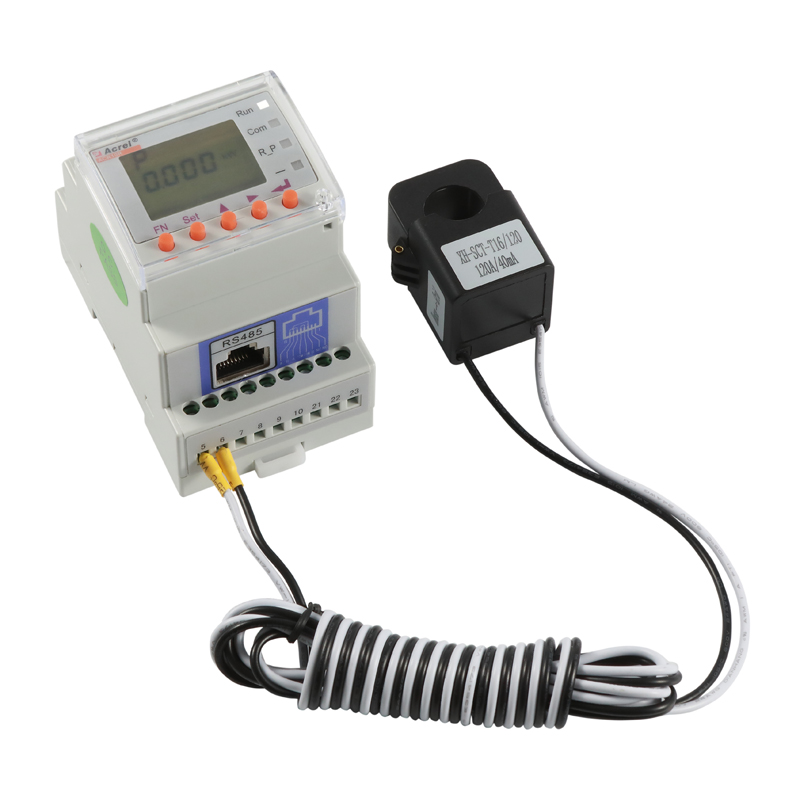

RS485 communication terminal connection can use either RJ45 female or normal connector

Model		ACR10R-D16TE
Input	Phase	Single phase
	Frequency	45~65Hz
	Voltage	Rated voltage：AC 100V 400V
		Overload：1.2 times the rated voltag（continuous）；2 times the rated voltage lasting for 1 second
		Power consumption：less then 0.2VA
	Current	Max current:120A
		Overload：1.2 times the rated current（continuous）；10 times the rated current lasting for 1second
		Power consumption：less then 0.2VA
Output	Communication	RS485 interface，Modbus—RTU
Output	Display	LCD
Measurement precision		Voltage:0.2 level,current,power Active energy：0.5 level，0.01Hz frequency,Reactive energy:1 level

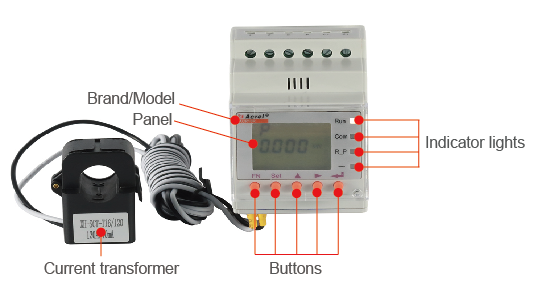

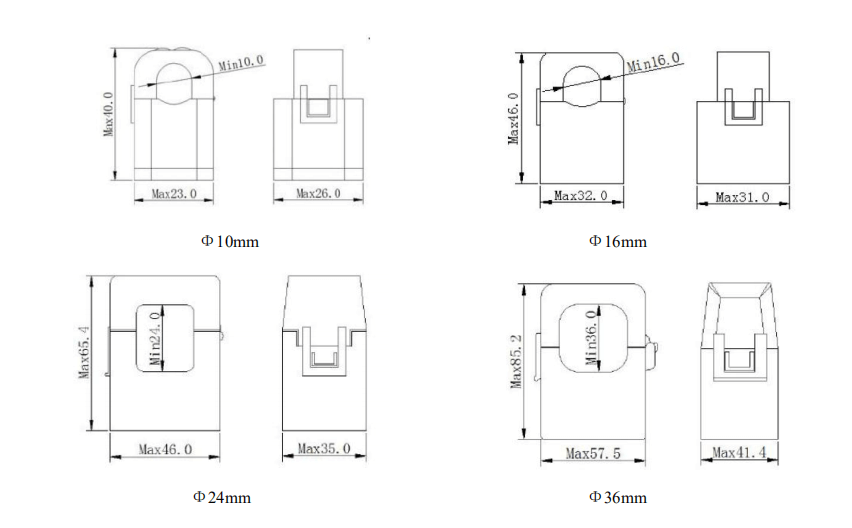

Split CT size		Through size 16mm
Power supply		AC 85~265V or DC 100~350V;power consumption≤10VA
Safety	Power frequency withstand voltage	AC2kV 1min between power supply，current input ，voltage input and communication
	Power frequency withstand voltage	AC2kV 1 min between each pair of combinations among power supply，current input and voltage input
	Insulation resistor	Input，output terminal to housing＞100MΩ
Environment	Working temperature	-10℃~55℃
	Storage temperature	-20℃~70℃
	Relative humidity	5%~95%，non-condensing
	Altitude	≤2500m
