ACREL PZ96L


A multifunctional power meter consists of the measurement unit and data processing unit. It provides time division and required electricity measurement functions in addition to the active/reactive power measurement. The power meter can also display, store, and output data.

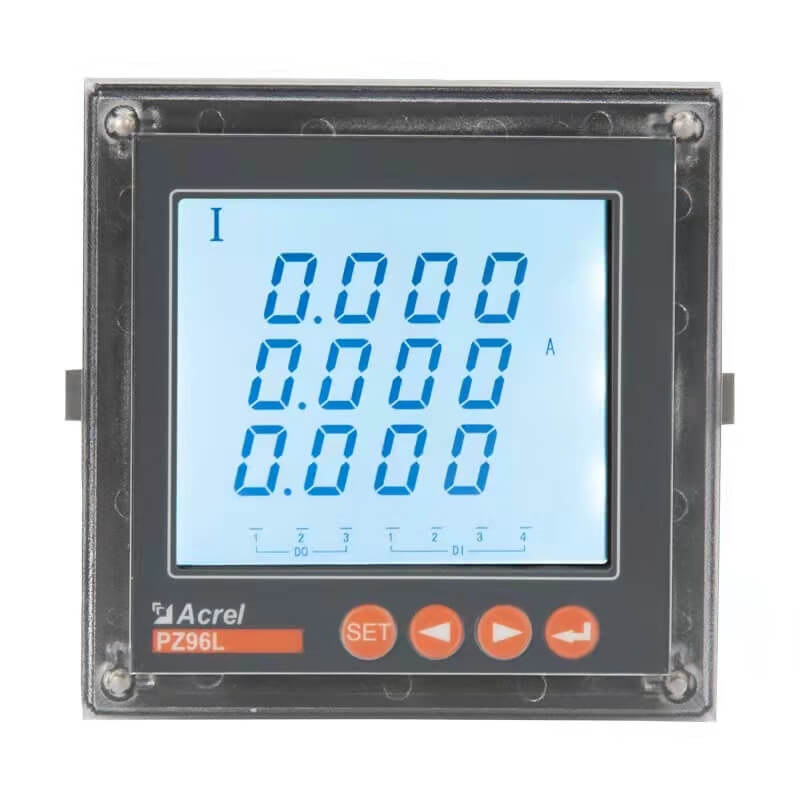

acrel pz96l 3

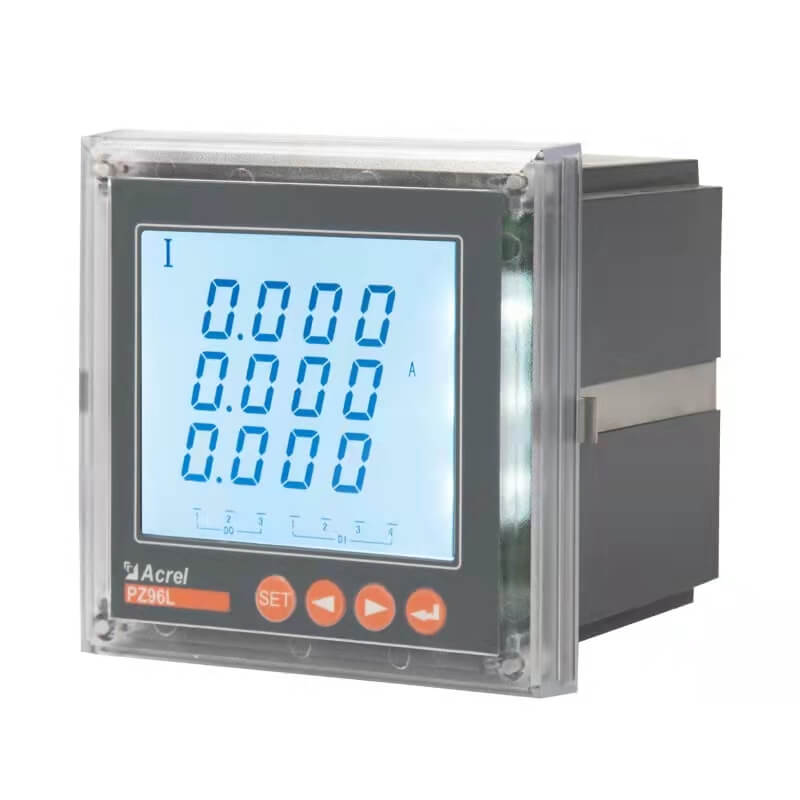

acrel pz96l 2

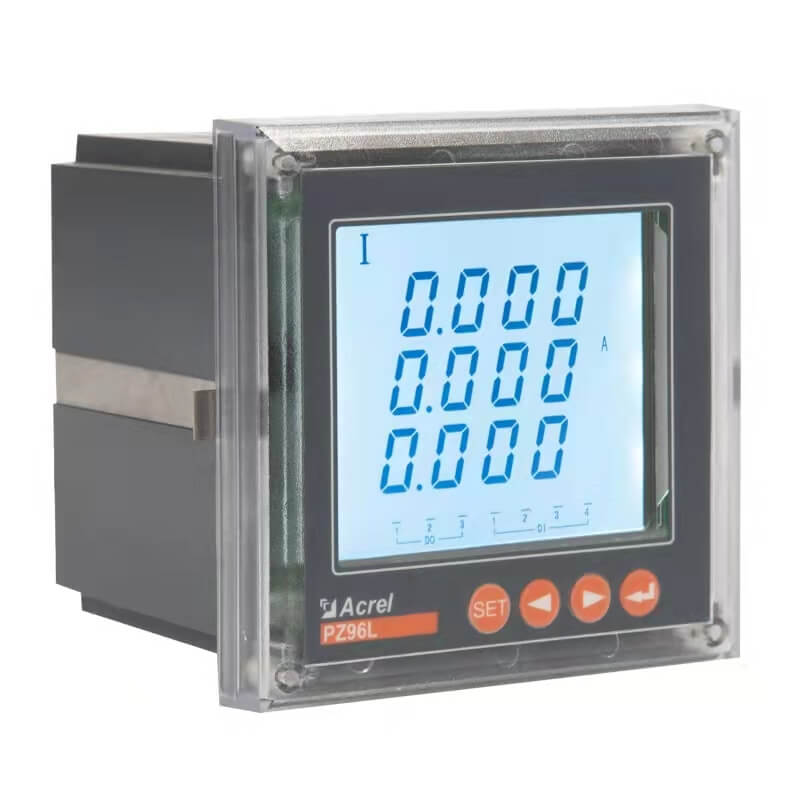

acrel pz96l 1

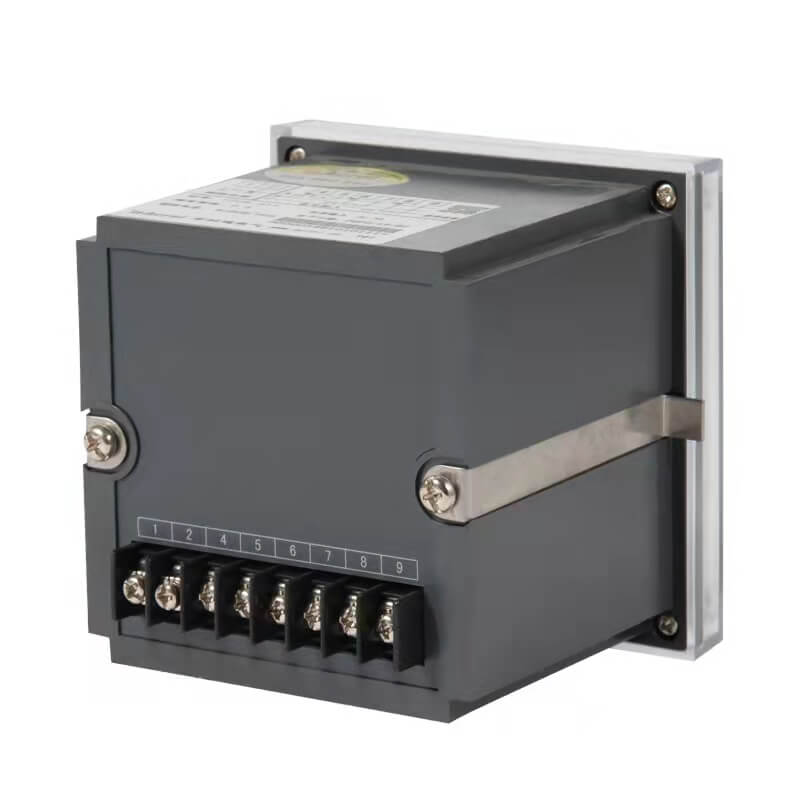

acrel pz96l 4


Technical parameter of Power Analyzer Acrel PZ96L

Power Analyzer Acrel PZ96L Dimension

How to Wire a Power Analyzer Acrel PZ96L

Technical parametersValue
Line-to-line Voltage400Vac
Rated CurrentAC IA, 5A
Frequency
45~65Hz
Accuracy (active)Class 1
CommunicationSupport RS485 Modbus-RTU
DisplayLED or LCD display
SwitchInput4 digital input
Output2 digital output
contact capacity- 1A/30VDC 1A/250VAC
Analog output4-20mA output
load capacity≤500Ω
Power supplyAC/DC 85~265V

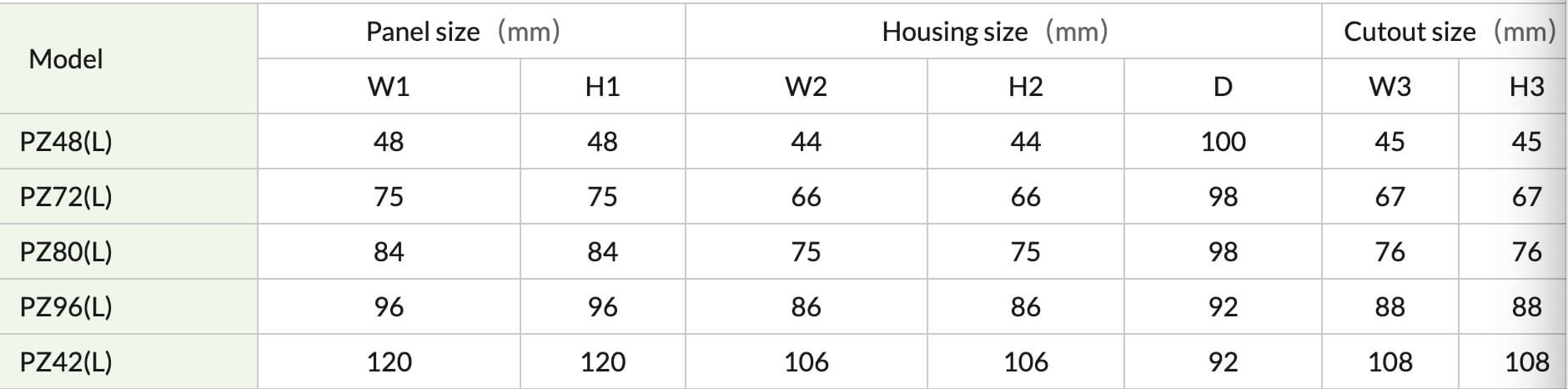

Power Analyzer Acrel PZ96L Dimension


How to Wire a Power Analyzer Acrel PZ96L
