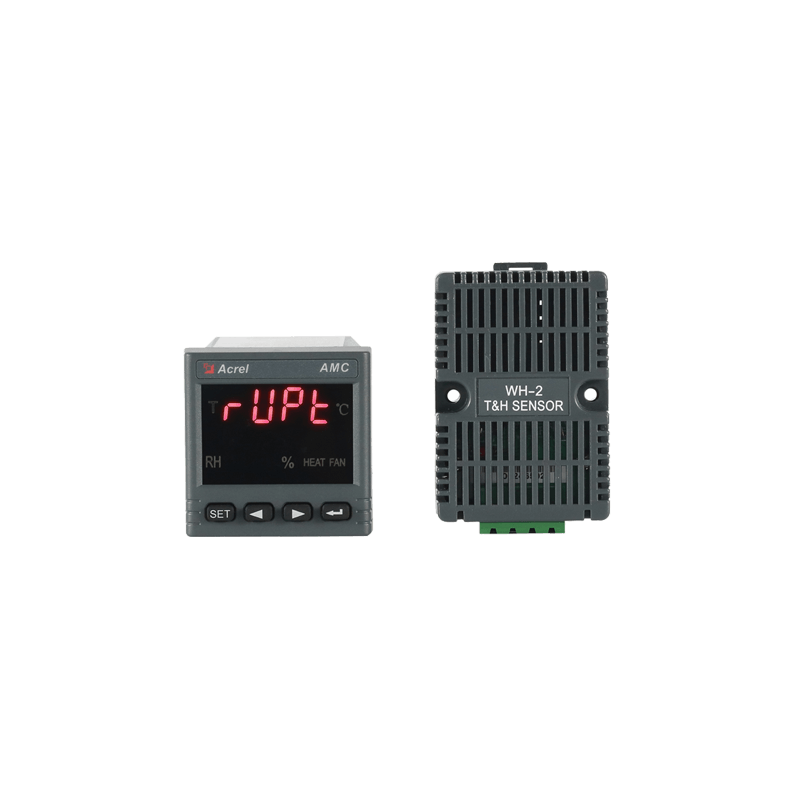

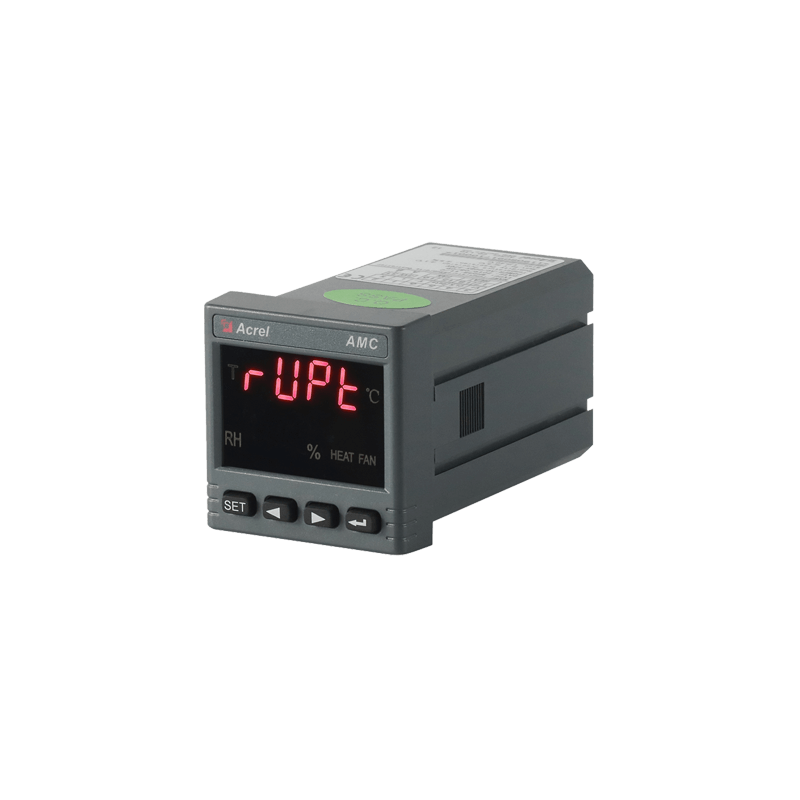

WHD48-11 Smart Temperature and Humidity Controller

Name: WHD48-11 Smart Temperature and Humidity Controller
Brand: Acrel Co., Ltd.

The controller for temperature and humidity is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creepage or flashover etc. from humidity or condensation. These products meet the requirements of GB/T 15309-1994.

 PDF Download  Get A Quote

Technical Parameters of WHD48-11 Smart Temperature and Humidity Controller

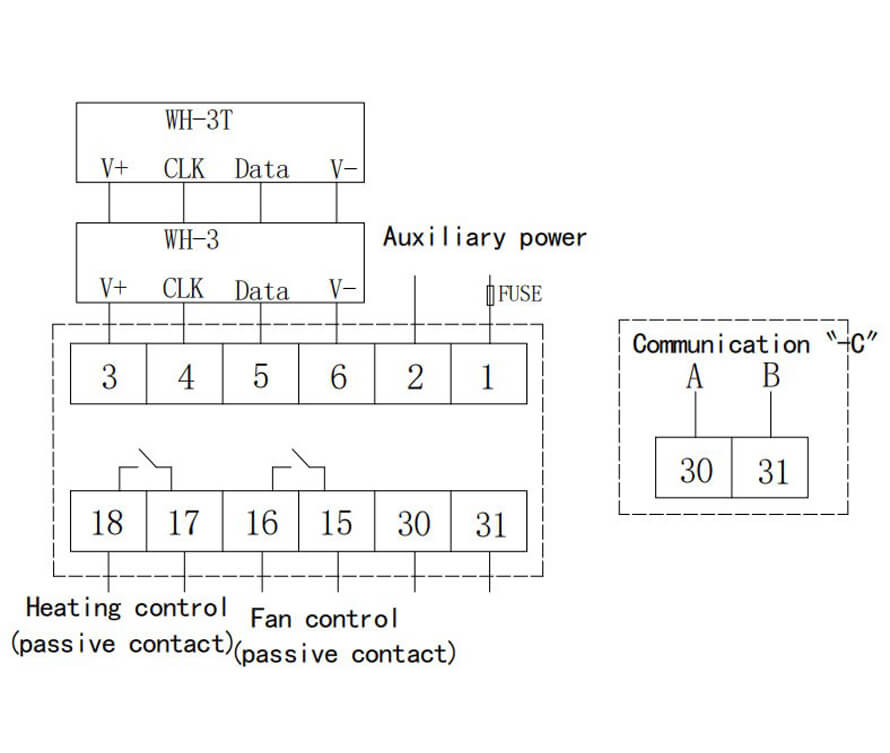

How to Wire an WHD48-11 Smart Temperature and Humidity Controller

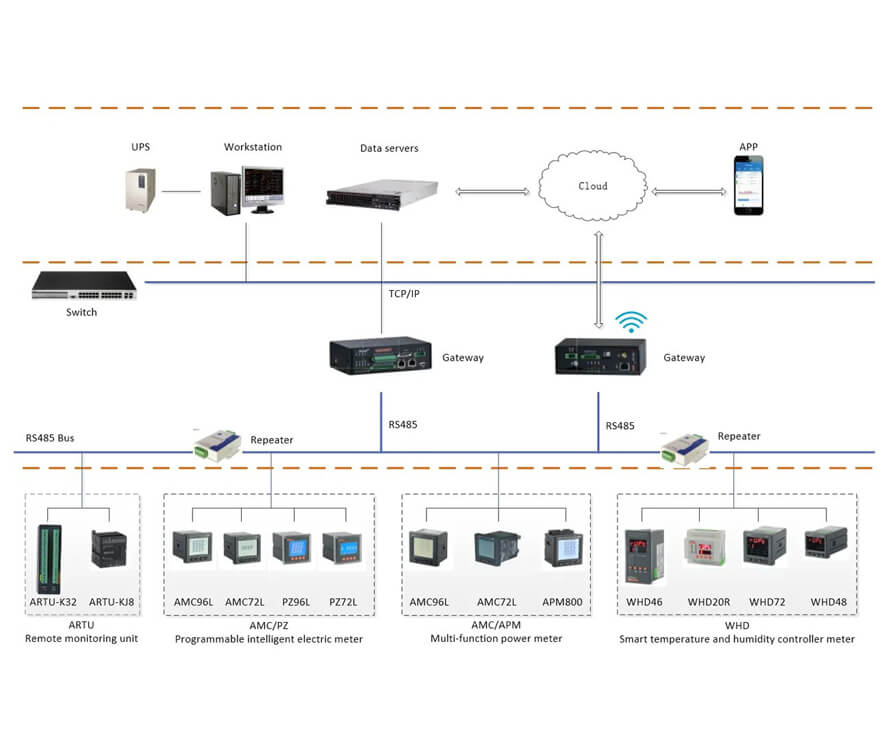

WHD48-11 Smart Temperature and Humidity Controller Applications

Technical Parameter		Value
Measuring Range	Temperature	-40.0℃~99.9℃
Measuring Range	Humidity	0%RH~99%RH
Precision	Temperature	±1℃
Precision	Humidity	±5%RH
Transmitting Output		DC 4-20mA or DC 0~20mA
Ser range of controlling parameter	Heating for Temperature rising	-40.0℃~40.0℃
	Blowing for temperature decreasing	0.0℃~99.9℃
	Humidity control	20%RH~90%RH
Output Contact Capacity		5A/AC250V
Start/stopgap		5
Communication port		RS485, MODBUS(RTU) treaty
Auxiliary Power	Voltage	AC/DC 85-265V
Auxiliary Power	Consumption	Basic power consumption(≤0.8w)+relay power consumption(each channel≤0.7w)
Insulation Resistance		≥100MΩ
Power-frequency withstand voltage		power with shell, touchable metal parts/power with other terminal groups 2kV/1 min(AC.RMS)
Average work time without stoppage		≥50000 hours
The working condition(controller)	Temperature	-20℃~+60℃
	Humidity	≤95%RH, without condensation and corrosive gas
	Altitude	≤2500m
