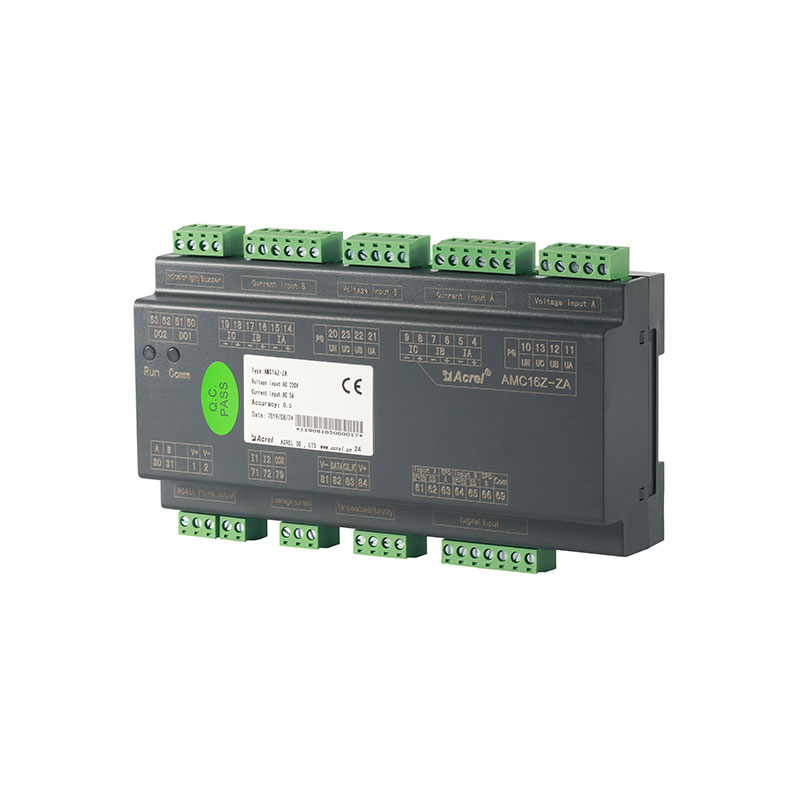

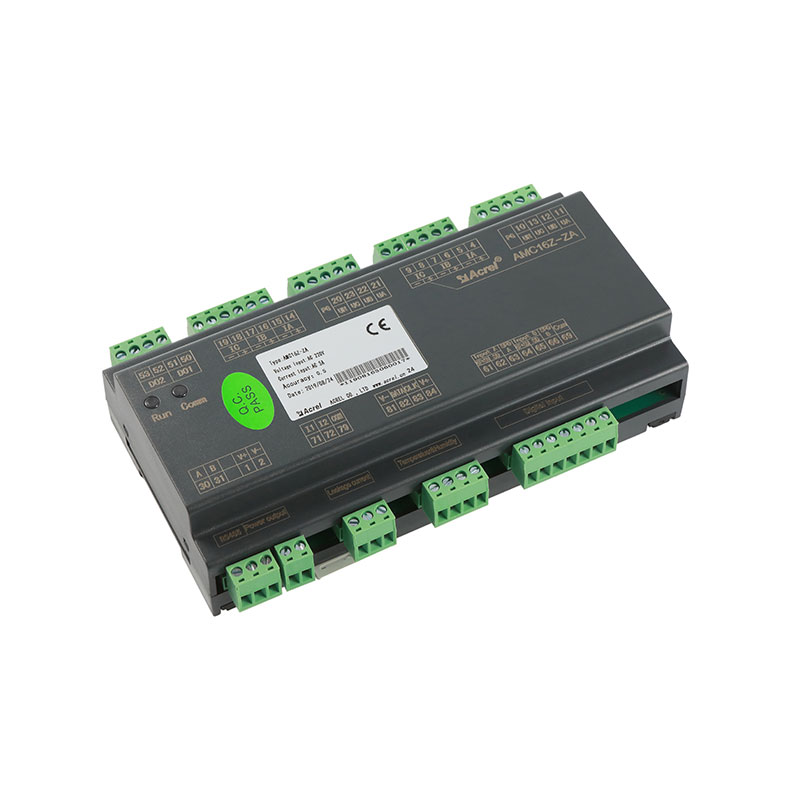

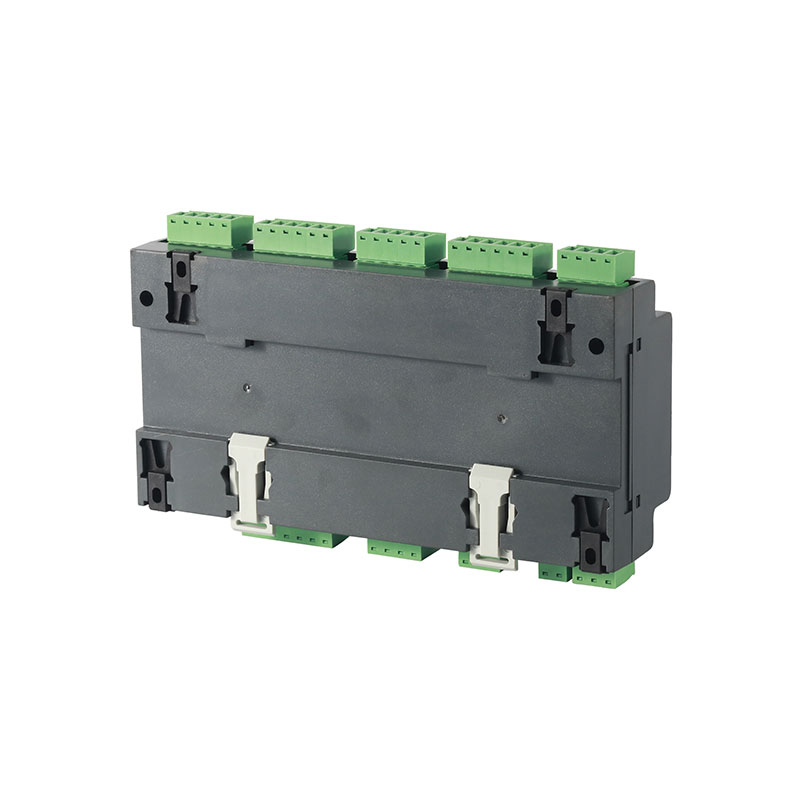

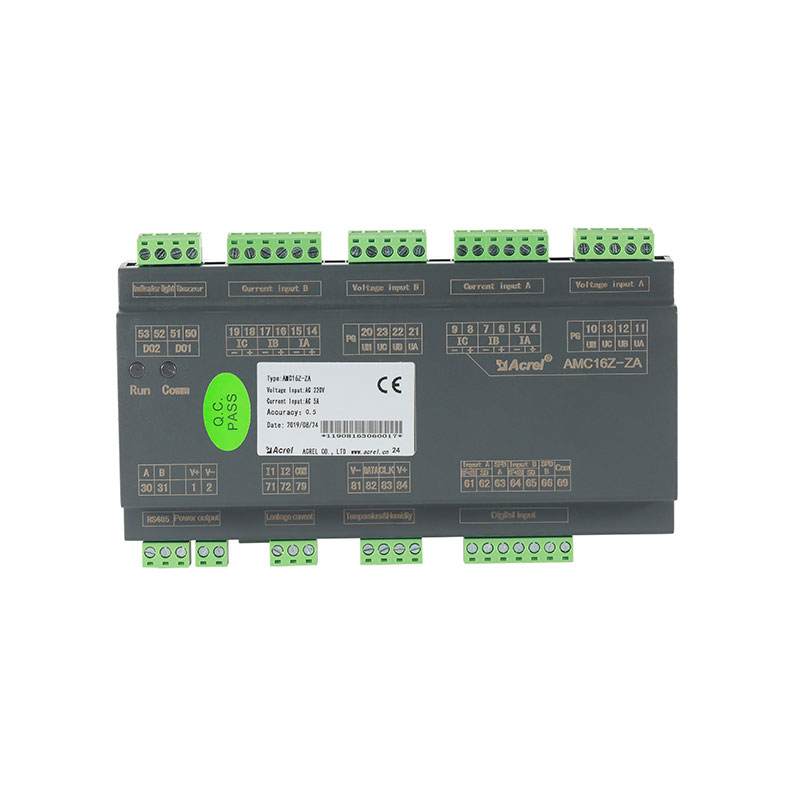

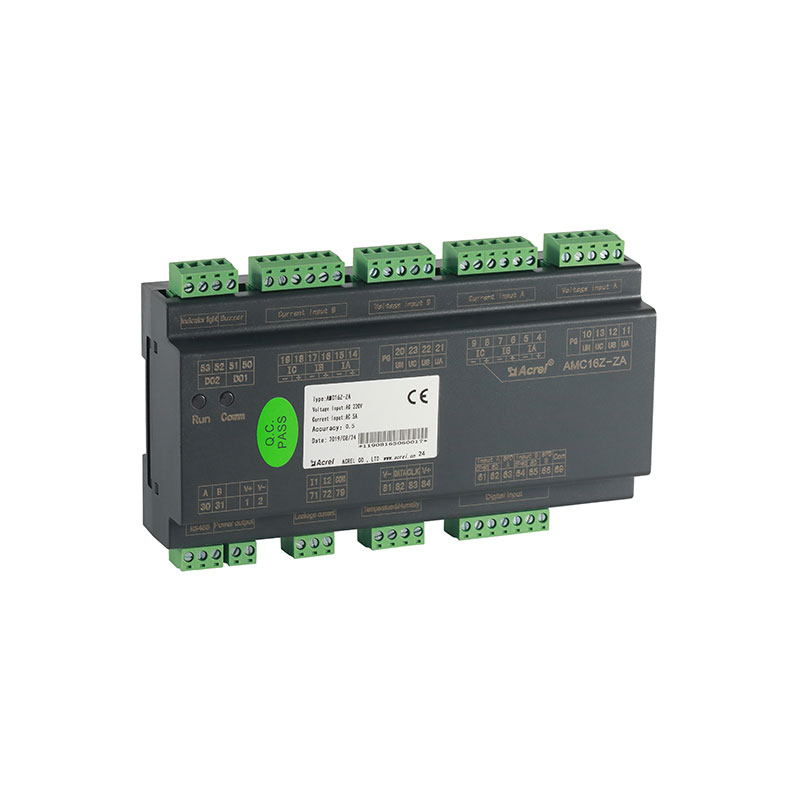

AMC16Z

Name: AMC16Z
Brand: Acrel Co., Ltd.

AMC16Z series is multi channels smart meter measurement device designed specifically for IDC data center server power management.The device design exquisite, can for A + B two into line and 96 road for electrical parameters, the input and output parameters of the switch state and the lightning protection device such as real-time monitoring, all alarm threshold measurement channels can be set in A separate, to qualify the limit event trigger system sound and light alarm, immediately on the volume in the traditional instrument, the height of the monitoring circuit integration.



 PDF Download  Get A Quote

Technical Parameters of AMC Series Multi Circuit Energy Meter

How to Wire an AMC Series Data Center Monitor Module

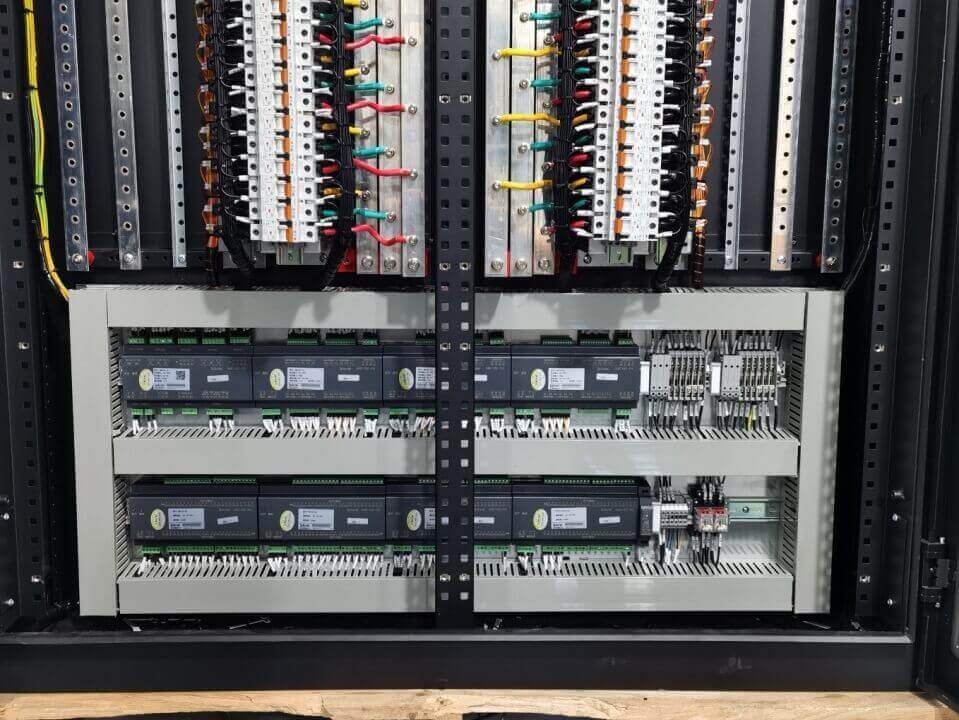

AMC Multi Circuit Energy Meter Applications

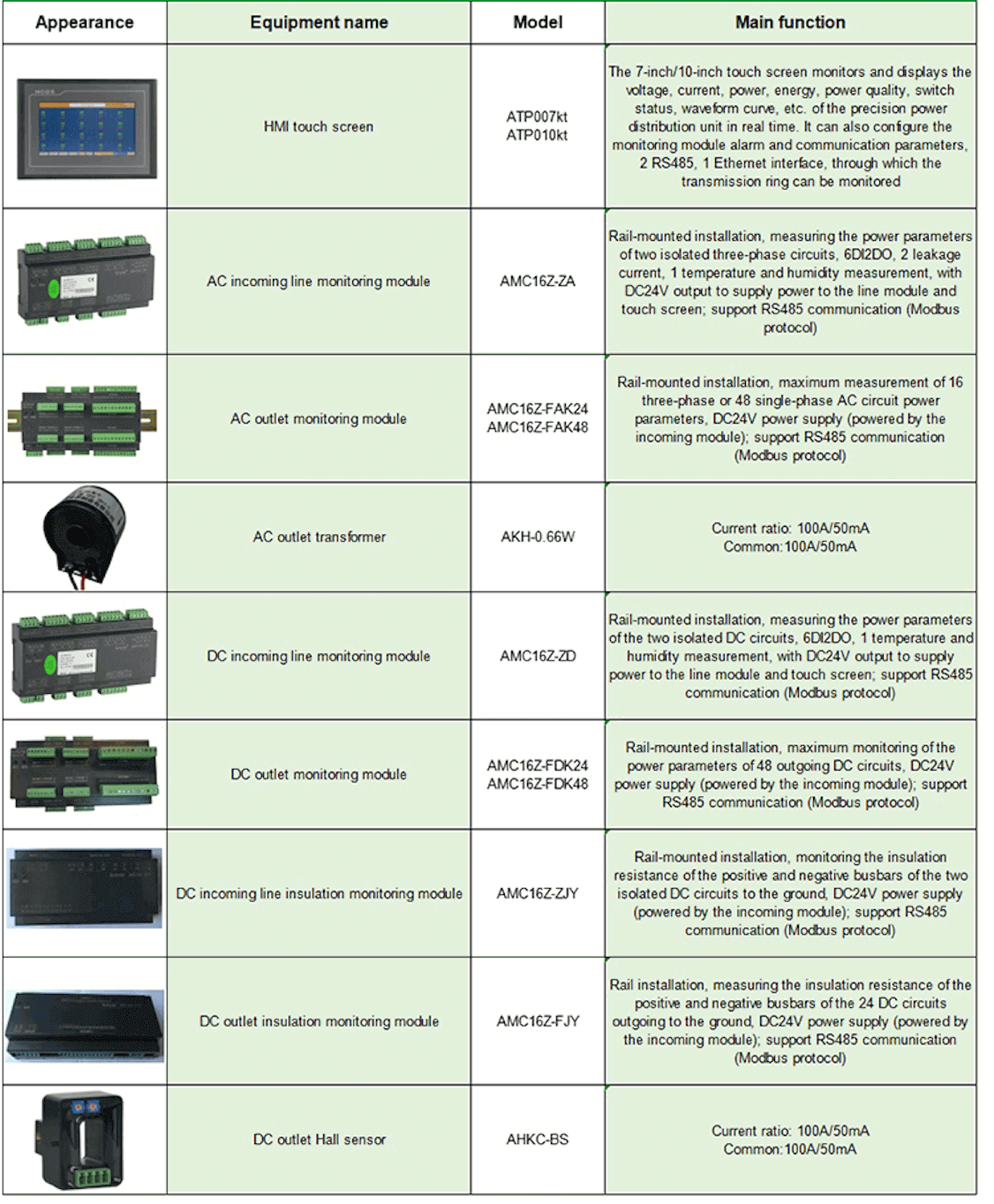

Type Model	Function description
AMC16MA	Three Phase：2 Channels inlet I,U,P,Q,EP,EQ,S Single phase :36 channels outlet(Three-phase 12 channnels outlet) I,U,P,Q,EP,EQ 1DO,RS485（Modbus-RTU）
AMC16Z-ZA	Monitor the full power parameters of A+B double-way three-phase AC incoming circuit, 6-way switch state monitoring, 2-way alarm output, 2-way leakage monitoring, 1-way temperature and humidity detection, 1-way RS485 communication, and phase-sequence detection.
AMC16Z-FA	Monitor the full power parameters of 24 branches of A+B double-way AC outgoing line, 1-way RS485 communication and phase adjustment.
AMC16Z-KA	Wet contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication.
AMC16Z-KD	Dry contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication.
AMC16Z-FAK24	Monitor the full power parameters and switch state of 24 branches of A+B double- way AC outgoing line, 1-way RS485 communication and phase adjustment.
AMC16Z-FAK48	Monitor the full power parameters and switch state of 48 branches of A+B double- way AC outgoing line, 1-way RS485 communication and phase adjustment.
AMC16Z-FDK24	Monitor the full power parameters and switch state of 24 branches of A+B double-way DC outgoing line, 1-way RS485 communication and phase adjustment.
AMC16Z-FDK48	Monitor the full power parameters and switch state of 48 branches of A+B double-way DC outgoing line, 1-way RS485 communication and phase adjustment.
AMC16Z-AC220V	AC220V extended power supply, and use when the monitoring circuit is beyond 96 branches of A+B

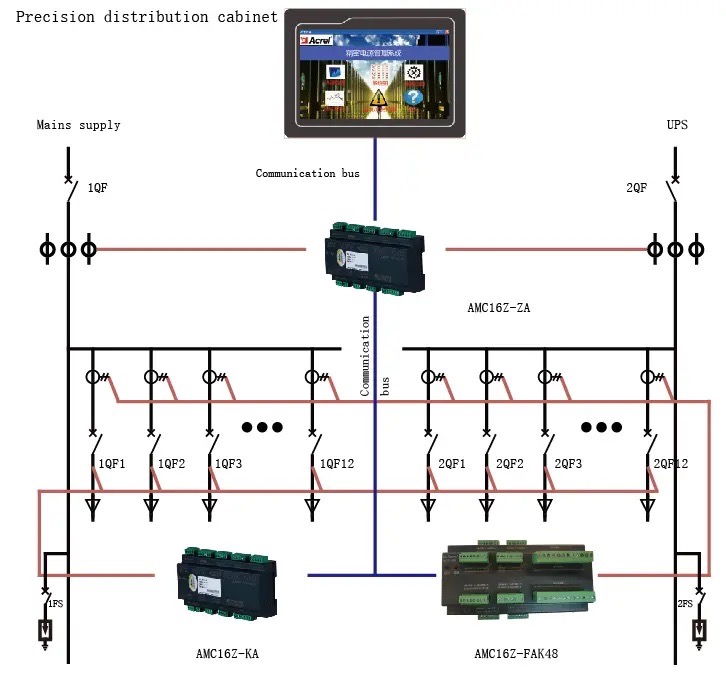

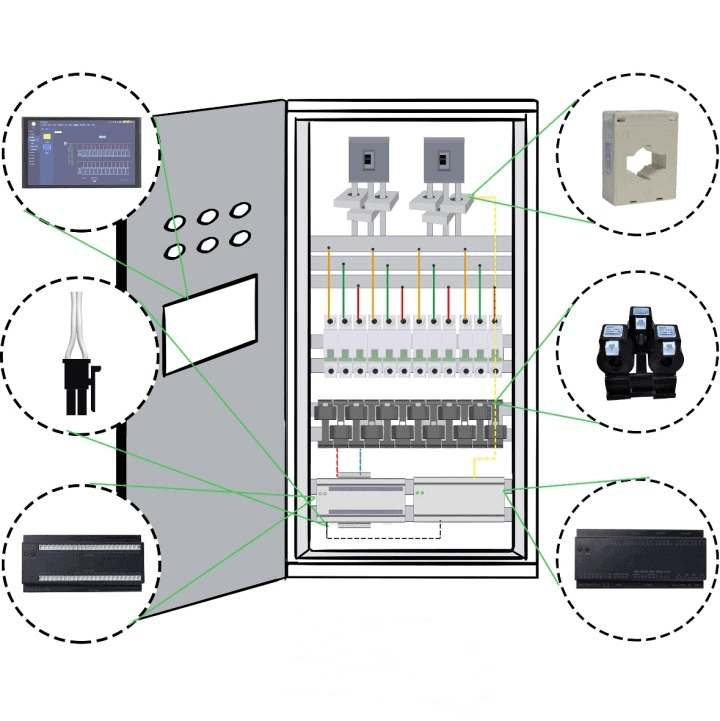

How to Wire an AMC Series Data Center Monitor Module

Certificate
