Electric Vehicle Supply Equipment

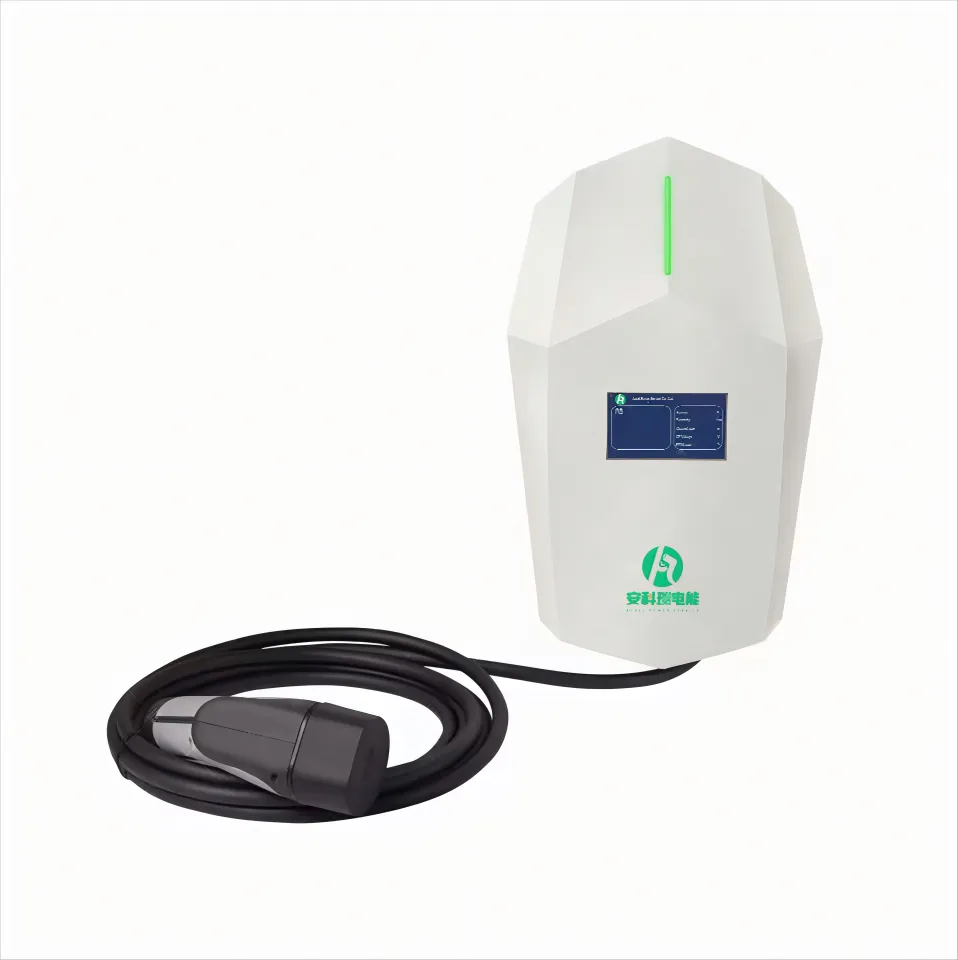

AC EV charger

Model	AEV300-AC007D-EU
Rated parameters	Input voltage	230VAC
	Input current	32A
	Rated power	7kw
	Size	440mm280mm80mm（LWD）
	Weight	4.1kg
	Charging cable length	5m
	Standard	EN 300328 V 2.2.2:2019 EN 300330 V 2.1.1:2017 EN 301908-1 V 15.2.1:2023 EN 301908-13 V 13.2.1:2022 EN IEC 62311:2020 EN IEC 61851-21-2:2021 EN IEC 61851-1:2019 EN 301489-1 V 2.2.3:2019 EN 301489-3 V 2.1.1:2019 EN 301489-17 V 3.2.4:2020 EN IEC 61000-6-1:2019 EN IEC 61000-6-2:2019 EN IEC 61000-6-3:2021 EN IEC 61000-6-4:2019 EN 301489-52 V 1.2.1:2021
	Certification	CE

The power supply mode of AC charging pile is AC single-phase power supply,input electrical requirements:

AC operating coltage:1P/N/PE 230V

AC operating frequency:50Hz/60Hz

DC EV Charger

Model	AEU160-160*	AEU160-120*	AEU160-80*
Input Rating	400Vac±15%, 3-phase, 50/60Hz, L1+L2+L3+N+PE
Input Current Rating	AC 245A	AC 184A	AC 122A
Power Factor	≥0.99 @ Full Load
Peak Efficiency	97%
Grid Type	TN-S, TN-C-S, TT
Output Interface	CCS2+CCS2 or CCS2+GBT
Output Power	160kW max. /connector 160kW max. in total	120kW max. /connector 120kW max. in total	80kW max. /connector 80kW max. in total
Output Voltage	150-1000Vdc
Output Current	A: DC 250A rated/300A boost@10min B: DC 250A rated/300A boost@10min
User Interface
Display	7-inch touch screen
Support Language	English (Other languages available upon request)
Button and Switch	Emergency button
User Authentication	RFID card, App , Credit card (optional)
RFID Reader	ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Communication
Network Interface	4G, Wi-Fi, Ethernet
Protocol (EVSE&Backend)	OCPP 1.6J(OCPP2.0 could be updated in the future)
Protocol (EVSE&EV)	DIN70121, ISO 15118
Environmental
Operating Temperature	-30℃ ~ +55℃ (derating over 50°C)
Storage Temperature	-40℃ ~ +70℃
Humidity	5% ~ 95% no condensation
Altitude	≤2000m
Mechanical
IP Rating	IP55
IK Rating	IK10(Screen is IK08)
Cooling	Forced Air
Charging Cable Length	5m(standard) or 6m(optional)
Operating Range with Cable Management System	5m cable @ approx. 3m operating range (cable will not touch ground) 6m cable @ approx. 4m operating range (0.3m cable will be on ground)
Dimensions (WxHxD)	8001700500mm (without connector holder and cable management system)
Weight	Approx. 180kg	Approx. 200kg	Approx. 220kg
Installation	Ground mounting
Certification and standards
Standards and compliance	IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU
Certification	CE-RED, CB
